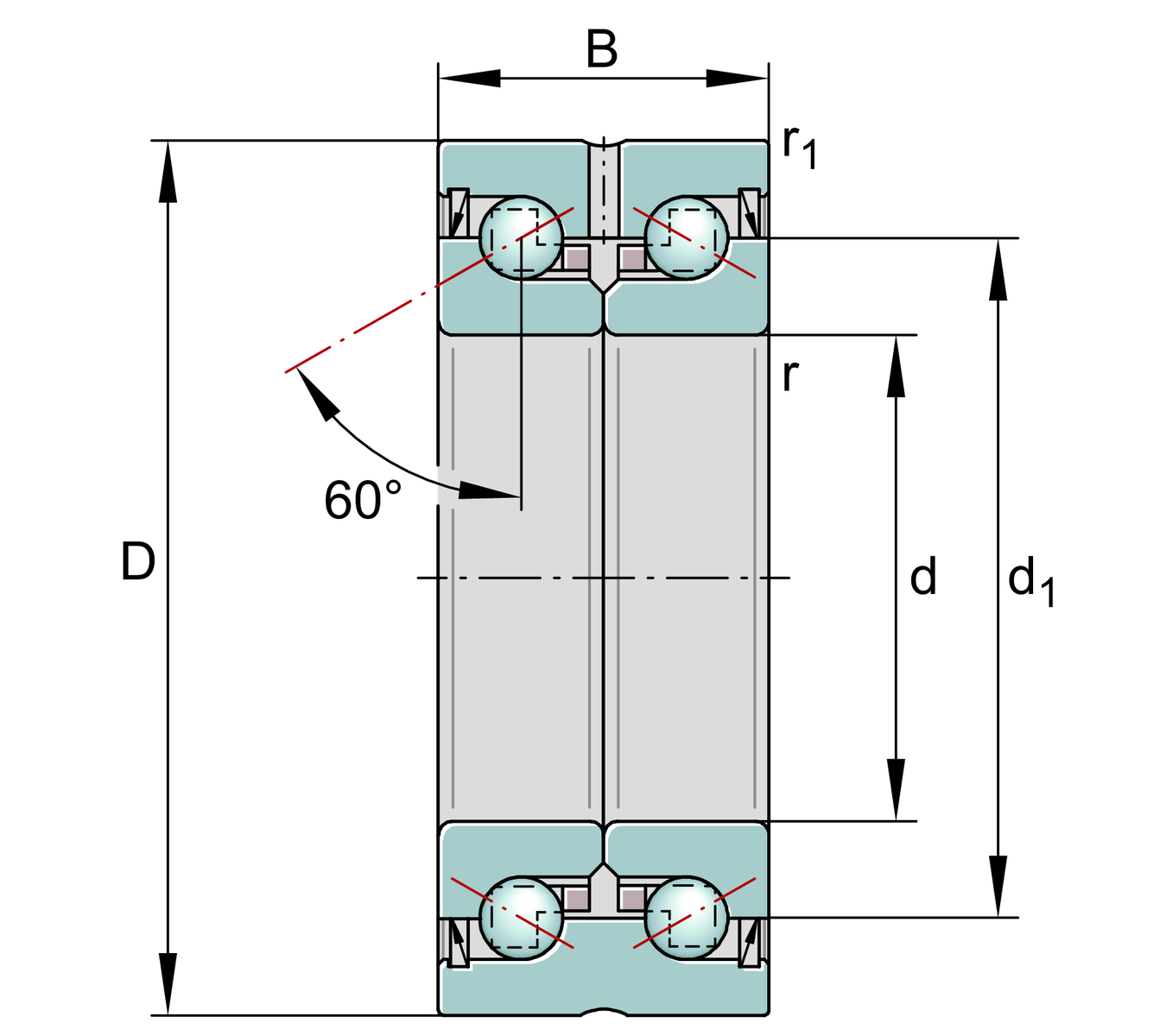

d 25 mm inner diameter
D 57 mm outer diameter
B 28 mm width
d1 40.5 mm inner ring rib diameter
rmin 0.3 mm min chamfer size
r1 min 0.6 mm min chamfer size

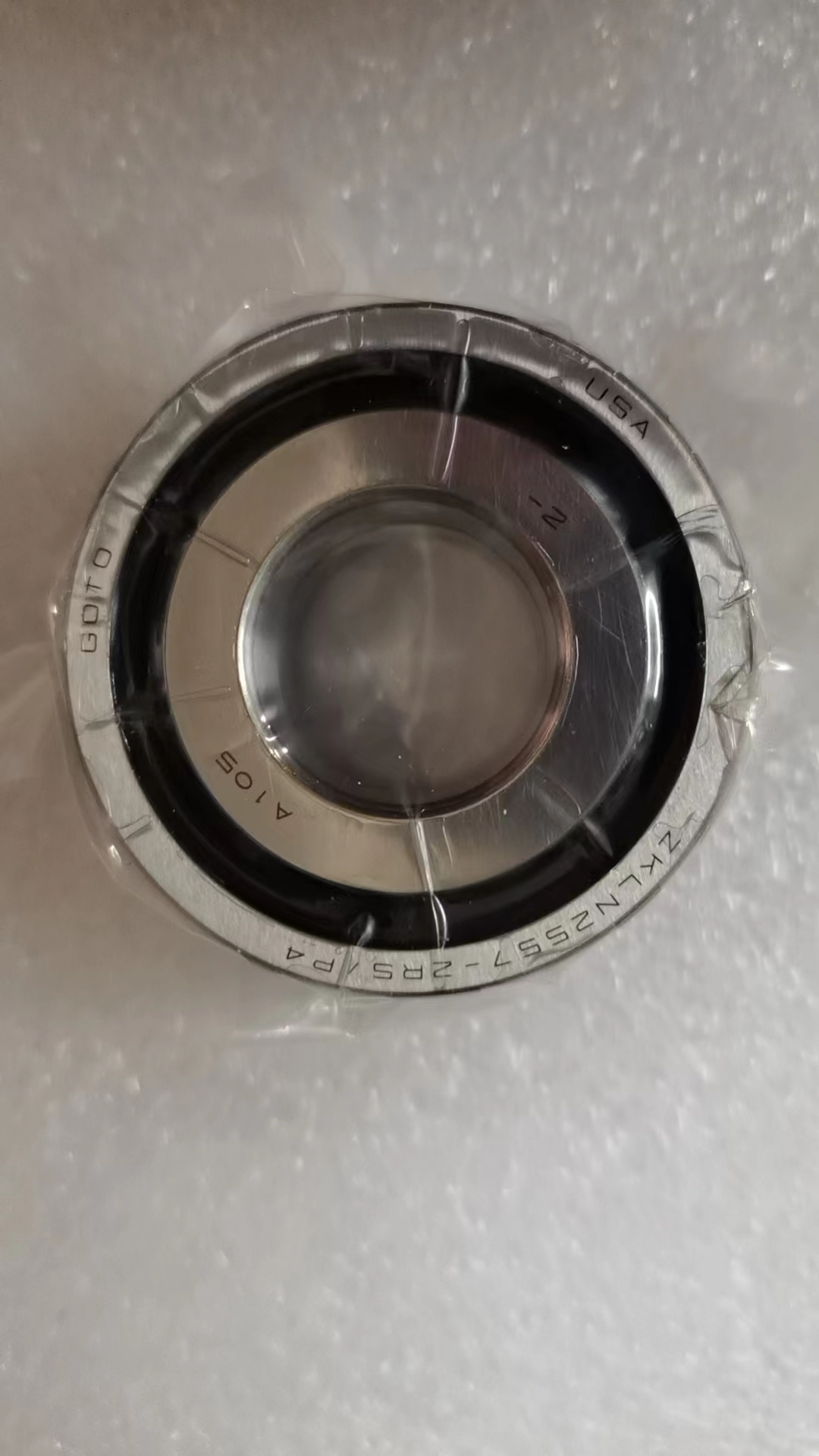

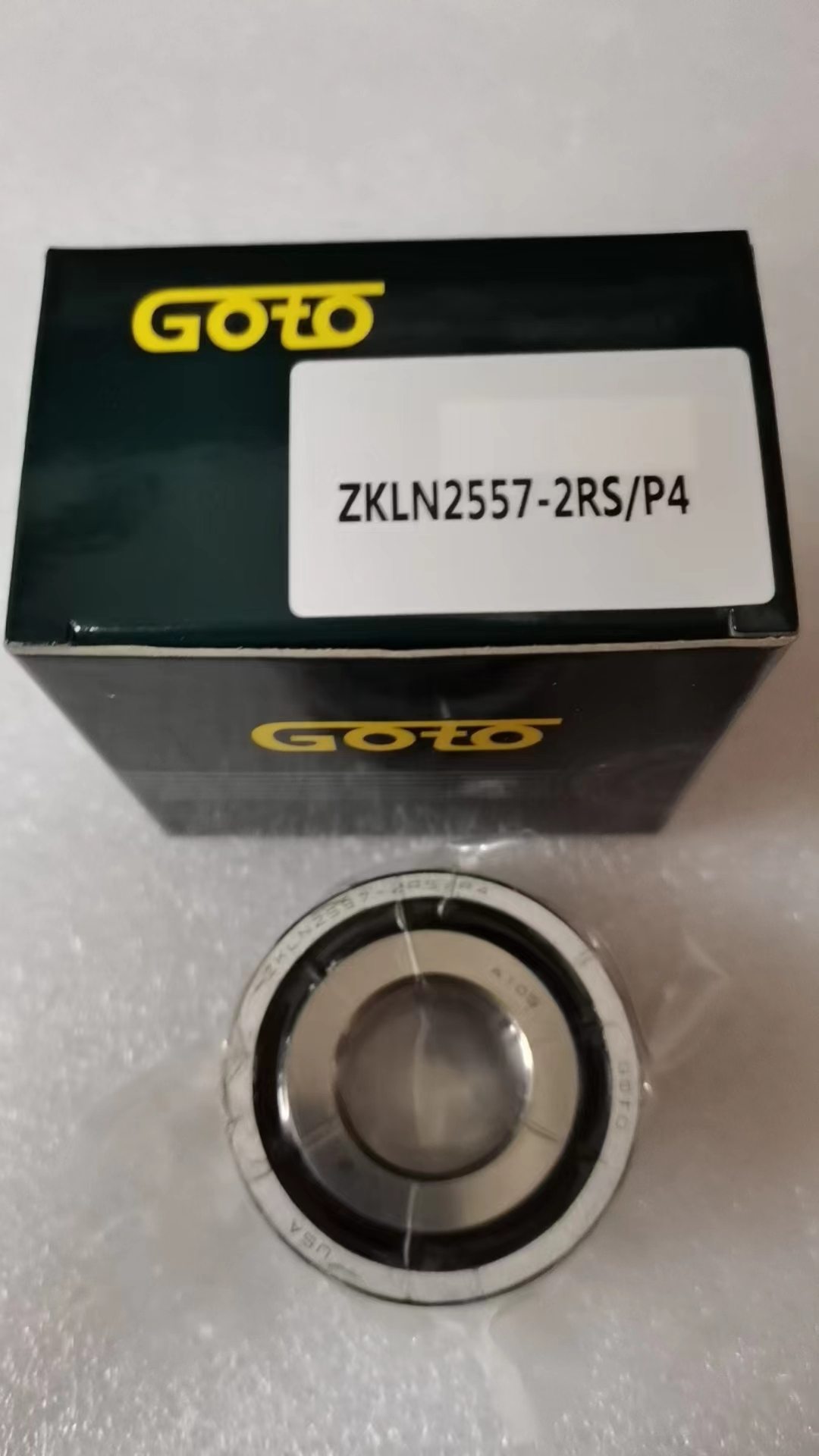

GOTO ZKLN2557-2RS/P4
d 25 mm inner diameter
D 57 mm outer diameter
B 28 mm width
d1 40.5 mm inner ring rib diameter
rmin 0.3 mm min chamfer size
r1 min 0.6 mm min chamfer size
